Gerard
|
 |
« Reply #15 on: May 02, 2017, 11:48:33 am » |
|
Hi Gerard,
Buy a Nuc or Barebone e.g. GIGABYTE BRIX GB-BACE-3150 fanless € 150,-
Regards Johan
Thanx i will look into it... :-) |
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
Gerard
|
|
« Reply #16 on: May 02, 2017, 11:51:30 am » |
|

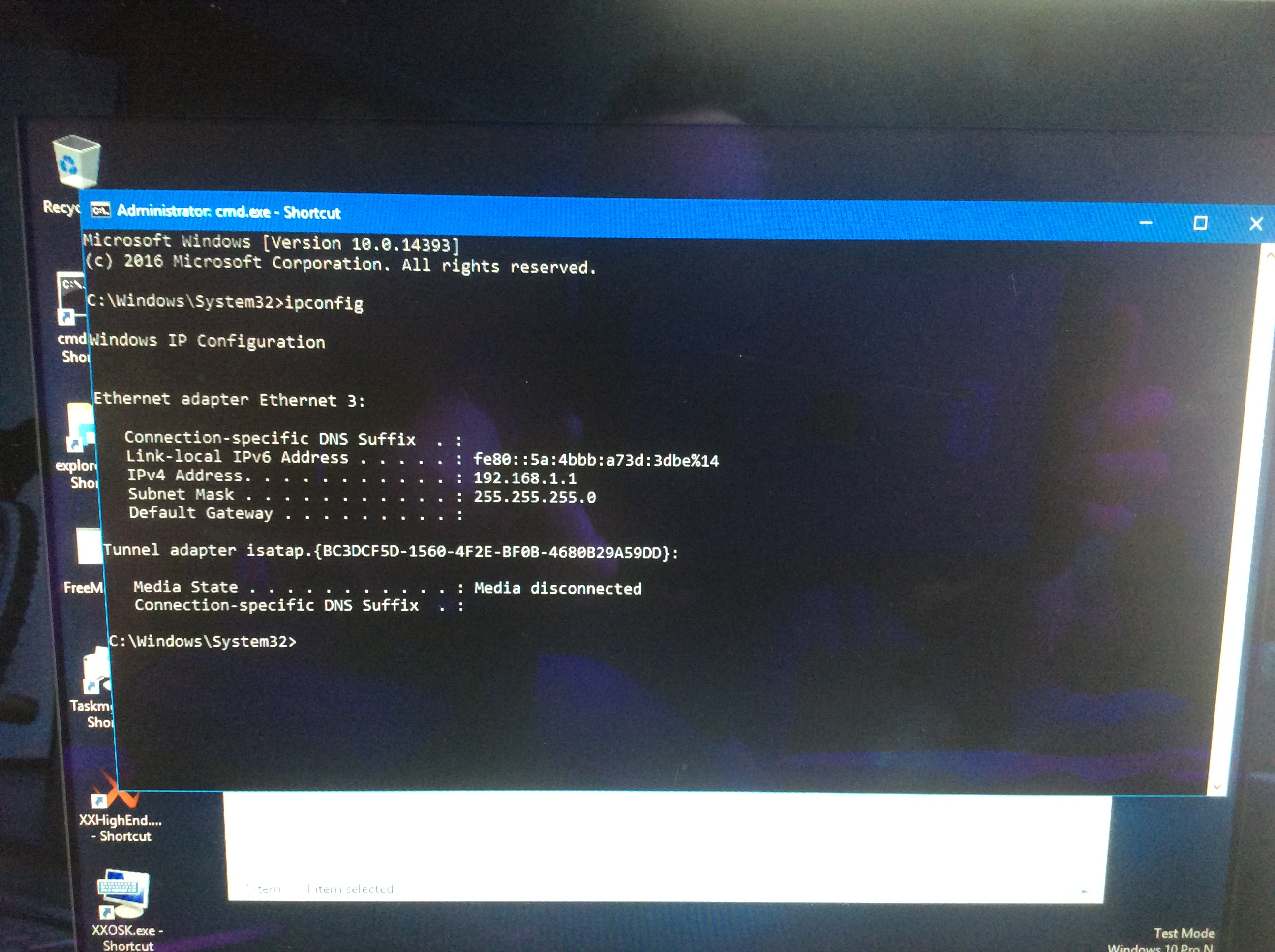

Ok..... Am i correct that a connection (LAN) between a laptop and the xxhighendpc wont work because off the fact that the XXHighend pc which is not connected to the internet has no IP adress? So RDP wont work... When i enter IPCONFIG in the XXpc there is no IP adress shown  |
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
Arjan
|
|
« Reply #17 on: May 02, 2017, 01:17:46 pm » |
|
Hi Gerard,
You are correct. But you can determine a fixed ip address on the lan card and use that on both sides.
regards, Arjan
|
|
|
|
|
Logged
|
March, 2024 (2.11)
Mach II Stealth 14393 RAM-OS / with videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 14/0/0/1/ Q1Factor = 4 (Dev.Buffer = 4096) / ClockRes = 10ms / SFS = 10.13 Mx = 10.13 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / NO Arc Prediction / Custom filter 8x low / 8x Upsampling / XTweaks 62 ,1,-,1,1/with coverart / Stable / Optimal--> mobo USB --> The Lush^2 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 --> Speakers
|
|
|
|
Gerard
|
|
« Reply #18 on: May 02, 2017, 01:20:23 pm » |
|
Hi Gerard,
You are correct. But you can determine a fixed ip address on the lan card and use that on both sides.
regards, Arjan
Hey Arjan, And how can i do that?  |
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
Arjan
|
|
« Reply #19 on: May 02, 2017, 01:38:47 pm » |
|
Hi Gerard, Try to google for setup static ip address windows 10. e.g. https://www.supportrix.com/kb/how-to-set-a-static-or-fixed-ip-address-in-windows-10/ I use 192.168.1.2 as fixed IP address. Hope this helps you further. |
|
|
|
|
Logged
|
March, 2024 (2.11)
Mach II Stealth 14393 RAM-OS / with videocard / Engine#4 Adaptive Mode / Q1/3/4/5 = 14/0/0/1/ Q1Factor = 4 (Dev.Buffer = 4096) / ClockRes = 10ms / SFS = 10.13 Mx = 10.13 Straight Contiguous / driver buffer 16ms / Playerprio = Low / ThreadPrio = High / Scheme = 3-5 / Unattended / Minimize OS / PeakExtend off / NO Arc Prediction / Custom filter 8x low / 8x Upsampling / XTweaks 62 ,1,-,1,1/with coverart / Stable / Optimal--> mobo USB --> The Lush^2 100 cm --> NOS1a 75B --> Blaxius --> bnc amps Jadis JA30 --> Speakers
|
|
|
|
Gerard
|
|
« Reply #20 on: May 02, 2017, 01:41:42 pm » |
|
Ok will try that when i am home... I can do that in 14393.0 in the XX pc? Do not need to go to another version? |
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
PeterSt
|
|
« Reply #21 on: May 02, 2017, 01:46:55 pm » |
|
Ok..... Am i correct that a connection (LAN) between a laptop and the xxhighendpc wont work because off the fact that the XXHighend pc which is not connected to the internet has no IP adress? So RDP wont work... When i enter IPCONFIG in the XXpc there is no IP adress shown Gerard, these things must be arranged for while being in Normal OS ... Peter |
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
Gerard
|
|
« Reply #22 on: May 02, 2017, 01:51:41 pm » |
|
Peter, I did that Both pc are not connected to the internet. I liked to try to make a connection from my laptop to the Audiopc. Connected both with LAN kabel. Going to try making a IP adres when i am home |
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
arvind
|
|
« Reply #23 on: May 02, 2017, 03:13:30 pm » |
|
Hi Gerard,
Control panel/Network & Internet/Network Connections/right click on Ethernet/ click properties from drop down menu/select internet protocol version4 (TCP/IPv4)/double click/select use only the following IP address/in IP address enter 192.168.1.1/press Tab which will give subnet mask 255.255.255.0/click ok.
Same process for the other PC or laptop except enter IP address as 192.168.1.2.
Now you've created static IP address for each PC.
Hope this helps.
Best regards,
Arvind
|
|
|
|
|
Logged
|
W10-14393.0 RAM OS / Mach III LPS 14/28/XXHE 2.11/Engine#4/Adaptive Mode/16x /Custom Filter/Q1= 14/0/0/0 xQ1=1/Device Buffer:4096/Invert Phase=On/Minimise OS/PE=off/Unattended/Stop All Services/SFS=20.69/20.69(max)/ClockRes= 15ms/Straight Contiguous/Music on HDD/Lush^3 USB cable A:W-Y-R-G; B:W-Y-R/Phasure NOS 1a/75b/G3 USB DAC. > Blaxius*^2.5 A:B-G, B:B-G Interlink. Orelo MK II active speakers. ET^3 between Mach III & music server. Driver version 1.04/Driver Buffer 16ms. OSD text = Off
|
|
|
|
Gerard
|
|
« Reply #24 on: May 02, 2017, 05:04:15 pm » |
|

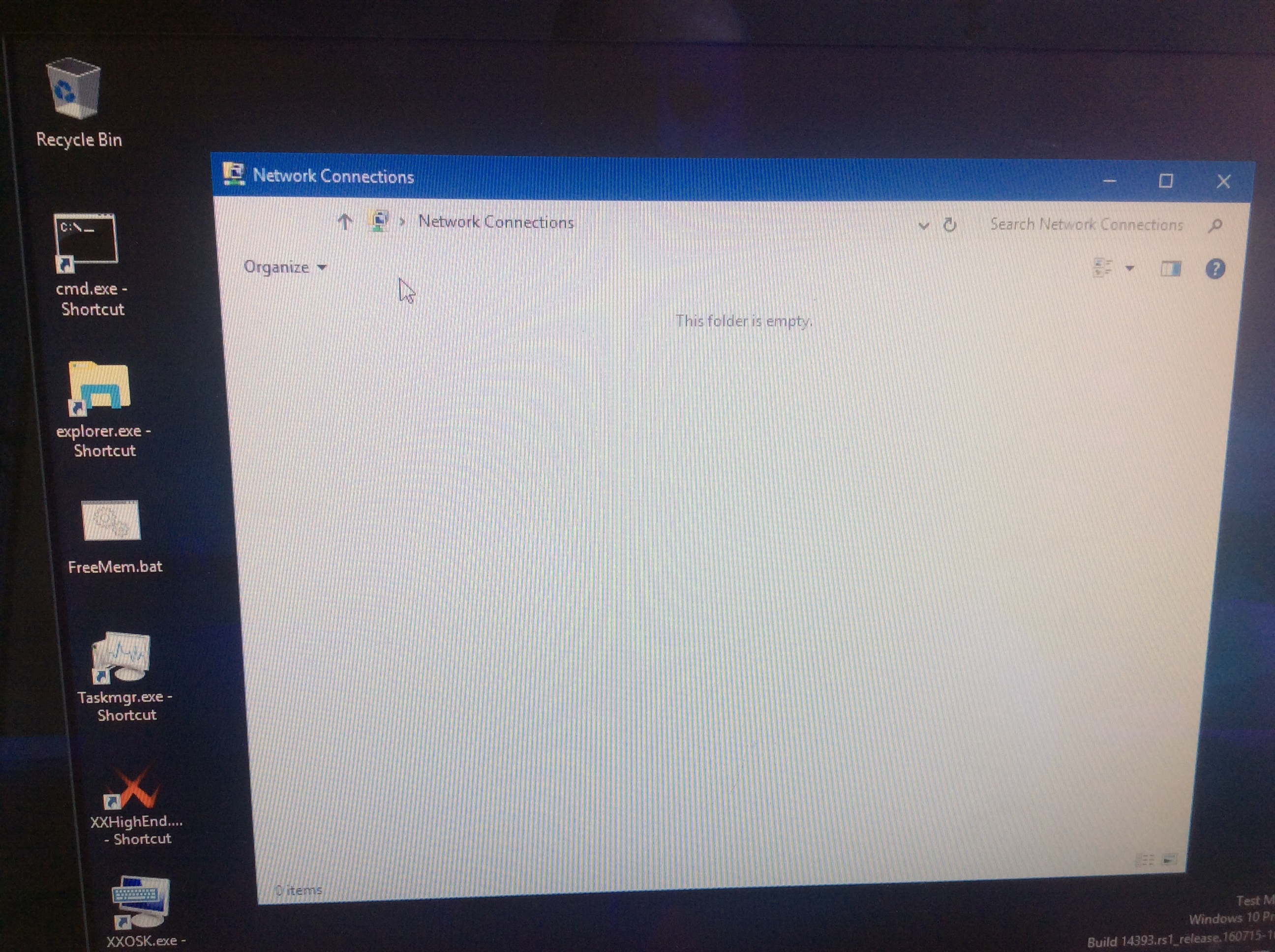

Hello Peter, Als Arvind Said i liked to go to the Network connections on the audio pc. But the folder is empty. Any idear? |
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
Gerard
|
|
« Reply #25 on: May 02, 2017, 05:18:57 pm » |
|
|
|
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
Gerard
|
|
« Reply #26 on: May 02, 2017, 05:34:32 pm » |
|

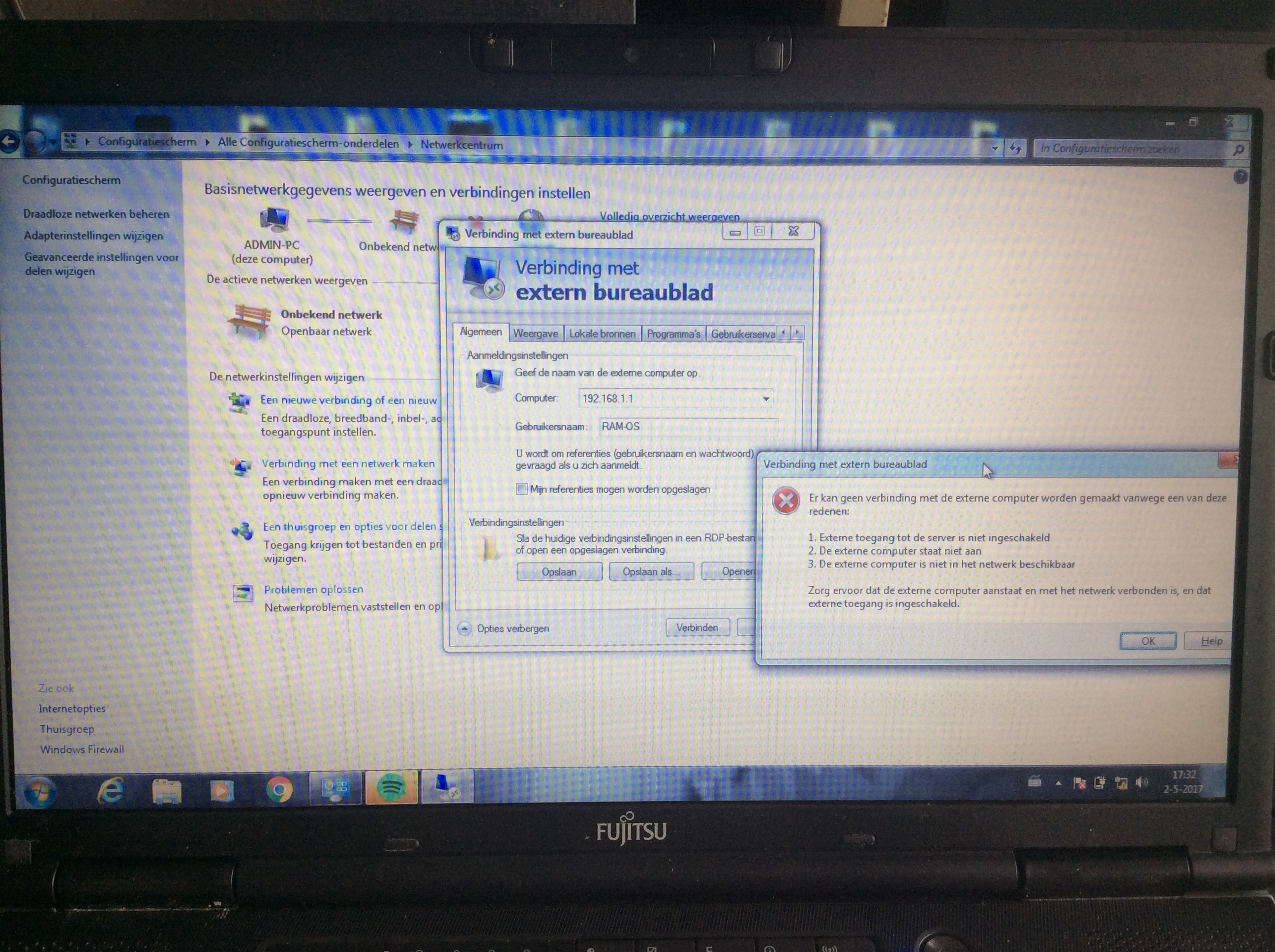

Ok next  I got these message.... |
|
|
|
Logged
|
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
PeterSt
|
|
« Reply #27 on: May 02, 2017, 05:41:40 pm » |
|
I don't know really, but I don't think the account name (gebruikersname) is RAM-OS. It will be XXHE. Not easy to get the overview with the size of you pictures. I know I know, you want to show off with your camera ... |
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
Gerard
|
|
« Reply #28 on: May 02, 2017, 05:52:59 pm » |
|
I don't know really, but I don't think the account name (gebruikersname) is RAM-OS. It will be XXHE. Not easy to get the overview with the size of you pictures. I know I know, you want to show off with your camera ... Sorry its easy with my tablet..... But XXHE wont work... |
Januari 2017 XX 2.05
OriginAE x11v Home build HTCP ~ Asus x79 mobo 3930K 12 core underclock 500 MHz,
16GB, *Windows 10 Pro 64 bit build 14393.0* *from RAM*, music on music server / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = *0.10* (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core *3-5* / Not Switch Processors during Playback = Off/ Playback Drive *none* (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Not the best (OS from RAM issue) / Time Stability = Off (OS from RAM issue) / Custom Filter Mid 705600 / -> USB3 (Silverstone both sides isolated = Sw#3 of NOS1a = Up) -> *Clairixa USB 15cm* -> Intona Isolator -> Clairixa USB 0.70m -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink ->> Metrum Amps ->> Metrum Acoustics ESL Open Baffle.
|
|
|
|
PeterSt
|
|
« Reply #29 on: May 02, 2017, 05:55:44 pm » |
|

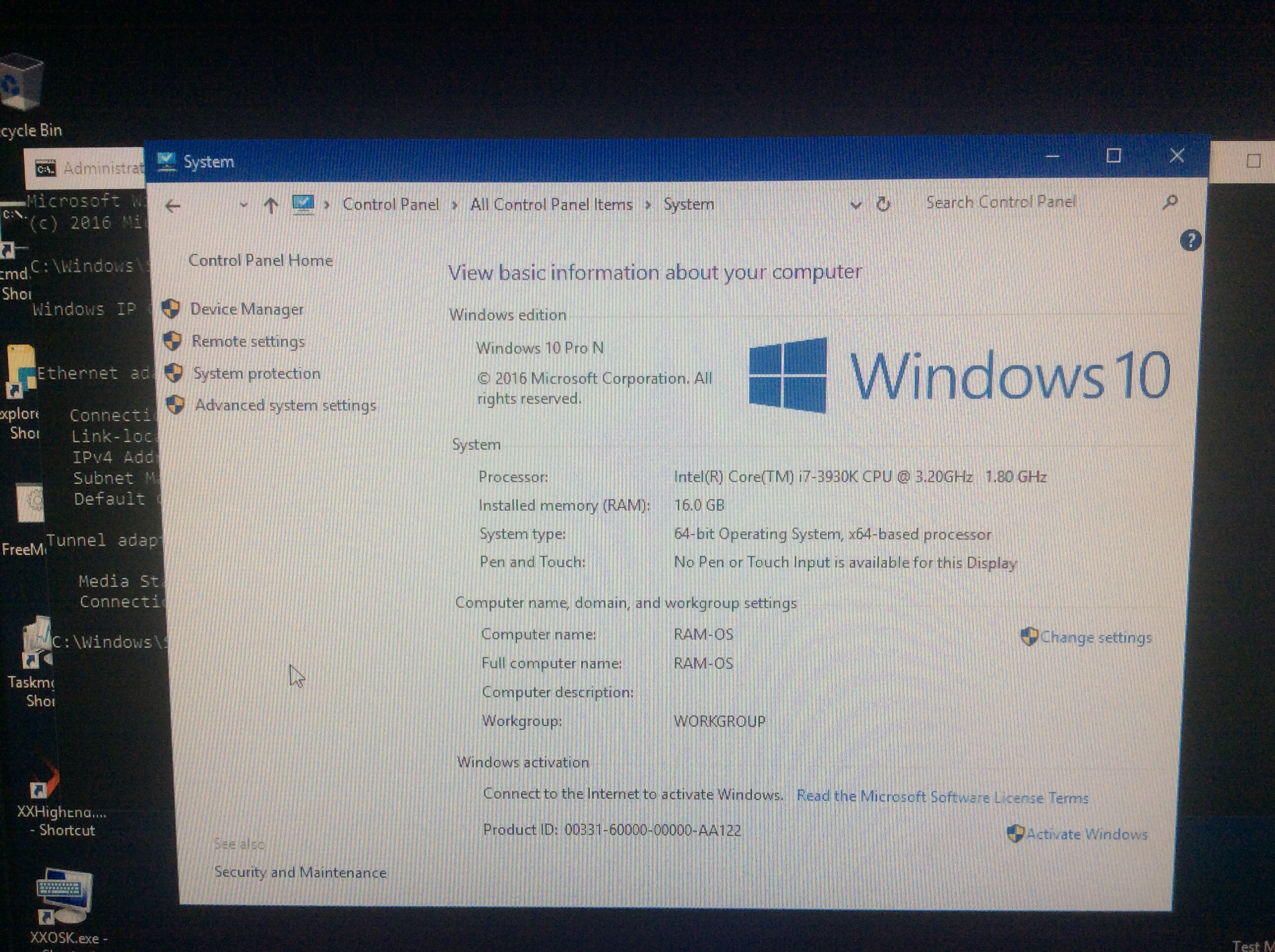

Gerard, that is the computer name you are showing there. The representative part you already filled with the IP address (this is good).
So, account name ...
(XXHE)
Peter
|
|
|
|
|
Logged
|
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13* (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10 (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
|
|
|
|
