Author Topic: 03 | Selecting Remote Control Software  (Read 6046 times)
0 Members and 1 Guest are viewing this topic.
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« on: May 30, 2015, 01:05:52 pm »


Anno May 2015 this is easy : get RDP from Microsoft.
RDP Remote Desktop Protocol (it was called like that many years ago, changed to RDC under way (Remote Desktop Client) and now is named RDP again).

RDP is free and is available for the Windows Operating System itself (meaning, where the client (is our "control") is running), for Mac OSX, for Mac IOS and for Android.

Please notice that not long ago RDP only existed for Windows itself and that "third party" means had to be used. By now you can be used to that because you were forced to, but in our view nothing comes close to RDP itself because of the (maybe coincidental) needs we have for our Remote Control. Do notice though that we combine it with two other tools :

- The XXOSK (XXHighEnd On Screen Keyboard) for the commonly known shortcut commands (Alt-x, Alt-u etc.);
- The Windows OSK for typing/selecting titles.

The latter is brought up automatically when the cursor is put to fields prone to typing (done by XXHighEnd and not by the OS), while there's also the convenient means of explicitly bringing up an OSK for Mac and Android (not available for normal desktop Windows itself - so only the touch screen devices).

All is unrelated to the OS the Audio PC is running ( Windows 7, Windows 8 ).

The very most crucial subject is the scaling and aspect ratio which is a pain in everything else, and which is super with RDP although it requires a few tricks for Windows itself. For that see here : Scaling the Remote Desktop.

With RDP there's one minor caveat only : it is way difficult to find the means to remove the mouse pointer and use all with normal tapping. But that is how we make it easy for you :

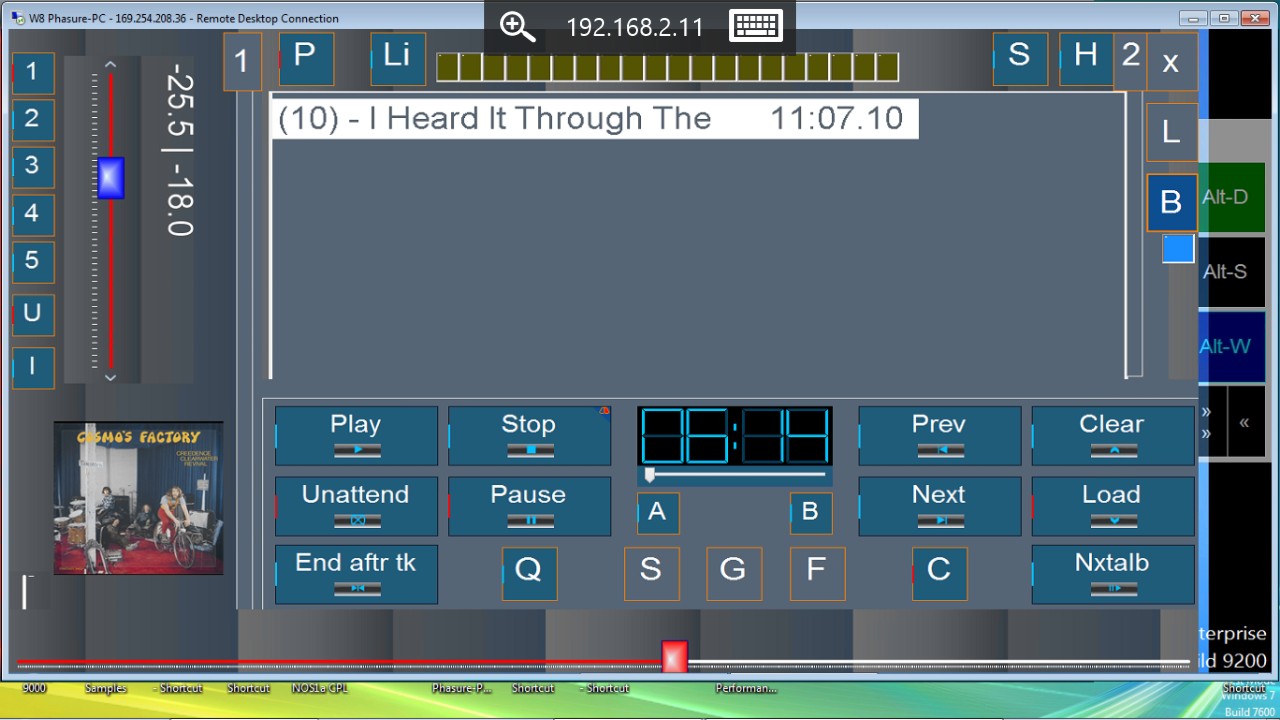

This is RDP from a Windows (8.1) Phone but it all looks exactly the same. Now see that small bar in the top middle. It is that what you need to tap in the middle of it (where the IP address shows) so you will receive the screen below :

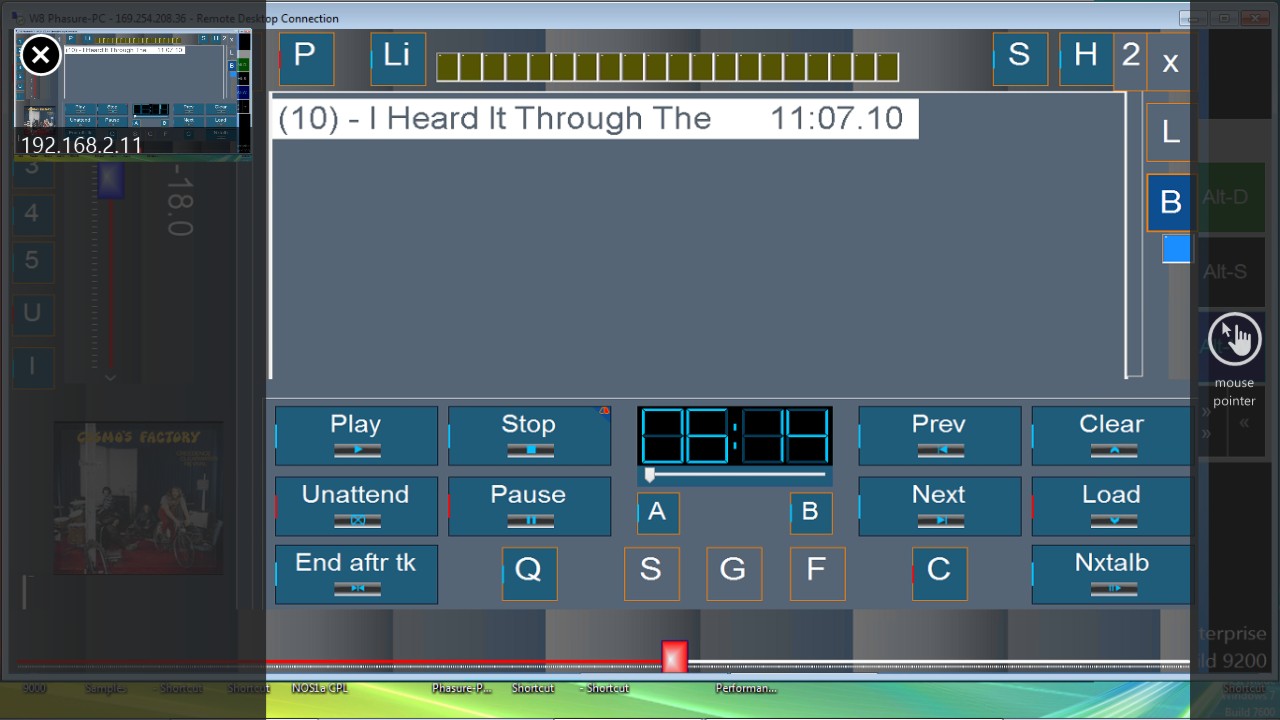

... and in the right hand you see a graphic which you can tap to make it "mouse operated" vs. "tap operated" (which is the current setting here and which is what you want).

Btw that bar in the top middle can be moved aside when needed.
Logged

For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).

For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
