Author Topic: Channel balance  (Read 3411 times)
0 Members and 0 Guests are viewing this topic.
Shreekant Somany
Audio Loudspeaker
*
Offline Offline

Posts: 63


View Profile
« on: November 06, 2021, 08:58:55 am »
Hi Peter,
On my system there is a slight difference in the balance. The left channel is a bit louder than the right. The bias readings on the DAC are 14.3 and 12.7 could this difference cause the imbalance. If so is there a way to correct it.
Shreekant
Logged
shreekant
PeterSt
Administrator
High Grade Audiophile
*****
Offline Offline

Posts: 16854



View Profile Email
« Reply #1 on: November 06, 2021, 09:43:00 am »
Hi Shreekant,

No, those numbers are totally unrelated to the channel balance.
Also, XXHighEnd does not have any means to change the balance.

The NOS1 is always checked for having the same output level at 2 decimals of a dB. Thus (at full scale) -2.071 and -2.076 dBFS are considered to be OK. There is no calibration possible at that level and the DAC chips as well as the gain stage in there, are just always fine that we could see (read : we never exchange ships or the gan stage (elements) when something is wrong. The only situation when something is wrong, is when something is not connected at all. And then the difference will be 3dB right away and we will see that.

All in other words : it is your amplifier or your ears. And don't underestimate the latter. If one of my ears is slightly off (which happens quite often in my situation) then this shows as channel imbalance. This can happen (obviously) with incorrect low frequency rendering (of my ears, that is) but even more easily with high frequency problems (and this can happen very easily, also with you).

Kind regards,
Peter
Logged
For the Stealth III LPS PC :
W10-14393.0 - July 17, 2021 (2.11)
XXHighEnd Mach III Stealth LPS PC -> Xeon Scalable 14/28 core with Hyperthreading On (set to 14/28 cores in BIOS and set to 10/20 cores via Boot Menu) @~660MHz, 48GB, Windows 10 Pro 64 bit build 14393.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/0/0/*1*/ Q1Factor = *4* / Dev.Buffer = 4096 / ClockRes = *10ms* / Memory = Straight Contiguous / Include Garbage Collect / SFS = *10.13*  (max 10.13) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / Stop Desktop, Remaining, WASAPI and W10 services / Use Remote Desktop / Keep LAN - Not Persist / WallPaper On / OSD Off (!) / Running Time Off / Minimize OS / XTweaks : Balanced Load = *62* / Nervous Rate = *1* / Cool when Idle = n.a / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = Optimal / Time Stability = Stable / Custom Filtering *Low* (16x) / Always Clear Proxy before Playback = On -> USB3 from MoBo -> Lush^3
A: W-Y-R-G, B: *W-G* USB 1m00 -> Phisolator 24/768 Phasure NOS1a/G3 75B (BNC Out) async USB DAC, Driver v1.0.4b (16ms) -> B'ASS Current Amplifier -> Blaxius*^2.5* A:B-G, B:B-G Interlink -> Orelo MKII Active Open Baffle Horn Speakers. ET^2 Ethernet from Mach III to Music Server PC (RDC Control).
Removed Switching Supplies from everywhere (also from the PC).
For a general PC :
W10-10586.0 - May 2016 (2.05+)
*XXHighEnd PC -> I7 3930k with Hyperthreading On (12 cores)* @~500MHz, 16GB, Windows 10 Pro 64 bit build 10586.0 from RAM, music on LAN / Engine#4 Adaptive Mode / Q1/-/3/4/5 = 14/-/1/1/1 / Q1Factor = 1 / Dev.Buffer = 4096 / ClockRes = 1ms / Memory = Straight Contiguous / Include Garbage Collect / SFS = 0.10  (max 60) / not Invert / Phase Alignment Off / Playerprio = Low / ThreadPrio = Realtime / Scheme = Core 3-5 / Not Switch Processors during Playback = Off/ Playback Drive none (see OS from RAM) / UnAttended (Just Start) / Always Copy to XX Drive (see OS from RAM) / All Services Off / Keep LAN - Not Persist / WallPaper On / OSD On / Running Time Off / Minimize OS / XTweaks : Balanced Load = *43* / Nervous Rate = 1 / Cool when Idle = 1 / Provide Stable Power = 1 / Utilize Cores always = 1 / Time Performance Index = *Optimal* / Time Stability = *Stable* / Custom Filter *Low* 705600 / -> USB3 *from MoBo* -> Clairixa USB 15cm -> Intona Isolator -> Clairixa USB 1m80 -> 24/768 Phasure NOS1a 75B (BNC Out) async USB DAC, Driver v1.0.4b (4ms) -> Blaxius BNC interlink *-> B'ASS Current Amplifier /w Level4 -> Blaxius Interlink* -> Orelo MKII Active Open Baffle Horn Speakers.
Removed Switching Supplies from everywhere.
Global Moderator
Tore
Audio Enthusiast
**
Offline Offline

Posts: 366


View Profile Email
« Reply #2 on: November 06, 2021, 09:35:16 pm »
Hi Shreekant

I have the same in my room, left channel is a bit loader than the right.

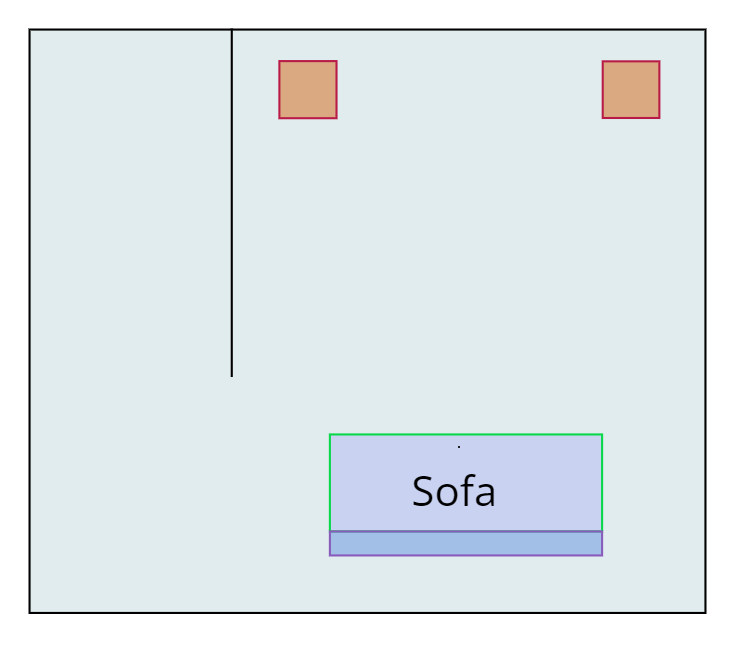

I think it is because of my room

* 254301702_626176535460996_3805836920322386264_n.png (7.73 KB, 747x650 - viewed 411 times.)
Logged
Phasure Mach III, 12/24 core (Win 14393.0 on RAM-OS / controlled by RDC, / connected directly to music server / XXHighEnd 2.11 / Minimize OS / Engine#4 Adaptive / DB=4096 / Q1=10 / xQ1=15 / Q3,4,5=1 / SFS=0.69 max=140,19 /XTweaks = 35, 10, 0, 0, 0 / Straight Contiguous / Clock Resolution = 15ms / Scheme 3-5 (low/realtime) / Unattended) mobo USB3 port -> Lush^3 -> Phasure NOS1a B75 G3 ->  Blaxius^2.5 , Crazy A monoblocs, Avantgarde Duo Omega
